The ARC is back! Conjuring up all the nostalgia, hoots and hollars from yesteryear. It's your instant-feedback steed for any trail. Show it your single track, pump track and your bike pack route too. It's got history to live up to and new history to make. Ans it's already impatient.

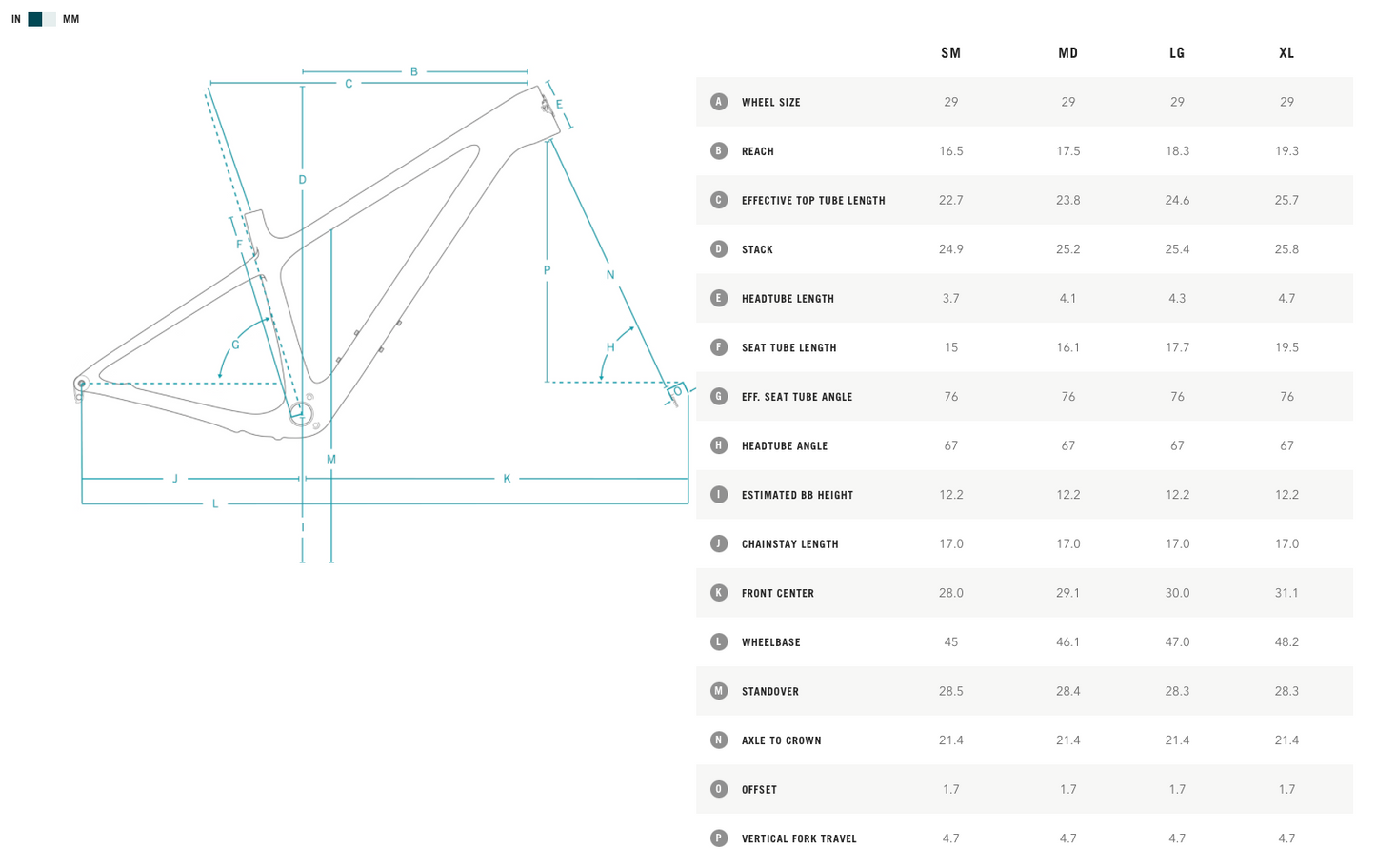

QUICK GEO:
Head tube angle – 67°
Seat tube angle – 76°
Chain stay length – 433mm
FRAME TRAVEL:
It’s old school fun, new school fast! No suspension necessary.
FORK TRAVEL:
130mm
WHEEL SIZE:
29″
SIZING:
Small – 155 CM – 169 CM
Medium – 165 CM – 180 CM
Large – 178 CM – 191 CM
X-Large – 185 CM – 201 CM
WARRANTY:
Lifetime
COLOURS:
Turquoise, Cobalt, Redrum
PRICING:
T-Series Frame Only – $3,500
T-Series SRAM GX AXS T-Type – $8,400
T-Series SRAM XO AXS T-Type (RockShox) – $9,600
T-Series SRAM XO AXS T-Type (Fox Factory) – $9,900
T-Series SRAM XX AXS T-Type – $12,200
SPECS:
- SRAM GX AXS T-TYPE
- SRAM X0 AXS T-TYPE RX
- SRAM X0 AXS T-TYPE FX
- SRAM XX AXS T-TYPE
| SB120 | TURQ SERIES CARBON |
| Fork | ROCK SHOX PIKE ULTIMATE 130MM |
| Shock | LEGS.. YES LEGS.. |
| Headset | CANE CREEK 40 INTEGRATED |
| Bar | RACE FACE AEFFECT R 35X780MM |
| Stem | RACE FACE AEFFECT R 35X50MM |
| Grips | RACE FACE GRIPPLER |
| Crank | SRAM GX EAGLE 32T / T-TYPE W/GUARD |
| Rear Der. | SRAM GX AXS T-TYPE |
| Cassette | SRAM GX EAGLE 10-52 T-TYPE |
| Shifter | AXS POD ULTIMATE RIGHT BRIDGE |
| Brakes | SRAM CODE BRONZE |
| F. Rotor | CENTRELINE 180 |
| R. Rotor | CENTRELINE 180 |
| Post | ONE UP DROPPER |
| Wheelset | DT M1900 WHEELSET 29 / 30MM |
| Tire Front | MAXXIS MINION DHF 29 X 2.6 EXO |
| Tire Rear | MAXXIS REKON 29 X 2.6 EXO |
| Saddle | WTB SILVERADO 142MM YETI |
| SB120 | TURQ SERIES CARBON |
| Fork | ROCK SHOX PIKE ULTIMATE 130MM |
| Shock | LEGS.. YES LEGS.. |
| Headset | CANE CREEK 40 INTEGRATED |
| Bar | RACE FACE NEXT R 35X780MM |
| Stem | RACE FACE TURBINE R 35X50MM |
| Grips | RACE FACE GRIPPLER |
| Crank | SRAM X0 EAGLE 32T / T-TYPE W/GUARD |
| Rear Der. | SRAM X0 AXS T-TYPE |
| Cassette | SRAM X0 EAGLE 10-52 T-TYPE |
| Shifter | AXS POD ULTIMATE RIGHT BRIDGE |
| Brakes | SRAM CODE SILVER |
| F. Rotor | SRAM HS2 180 |
| R. Rotor | SRAM HS2 180 |
| Post | ONE UP DROPPER |
| Wheelset | DT XM1700 WHEELSET 29 / 30MM |
| Tire Front | MAXXIS MINION DHF 29 X 2.6 EXO |
| Tire Rear | MAXXIS REKON 29 X 2.6 EXO |
| Saddle | WTB SILVERADO 142MM YETI |
| SB120 | TURQ SERIES CARBON |
| Fork | FOX FACTORY 34 130MM GRIP 2 |
| Shock | LEGS.. YES LEGS.. |
| Headset | CANE CREEK 40 INTEGRATED |
| Bar | RACE FACE NEXT R 35X780MM |
| Stem | RACE FACE TURBINE R 35X50MM |
| Grips | RACE FACE GRIPPLER |
| Crank | SRAM X0 EAGLE 32T / T-TYPE W/GUARD |
| Rear Der. | SRAM X0 AXS T-TYPE |
| Cassette | SRAM X0 EAGLE 10-52 T-TYPE |
| Shifter | AXS POD ULTIMATE RIGHT BRIDGE |
| Brakes | SRAM CODE SILVER |
| F. Rotor | SRAM HS2 180 |
| R. Rotor | SRAM HS2 180 |
| Post | FOX FACTORY TRANSFER |
| Wheelset | DT XM1700 WHEELSET 29 / 30MM |
| Tire Front | MAXXIS MINION DHF 29 X 2.6 EXO |
| Tire Rear | MAXXIS REKON 29 X 2.6 EXO |
| Saddle | WTB SILVERADO 142MM YETI |
| SB120 | TURQ SERIES CARBON |
| Fork | FOX FACTORY 34 130MM GRIP 2 |
| Shock | LEGS.. YES LEGS.. |
| Headset | CHRIS KING |
| Bar | RACE FACE NEXT R 35X780MM |
| Stem | RACE FACE TURBINE R 35X50MM |
| Grips | ODI ELITE PRO |
| Crank | SRAM XX EAGLE 32T / T-TYPE W/GUARD |
| Rear Der. | SRAM XX AXS T-TYPE |
| Cassette | SRAM XX EAGLE 10-52 T-TYPE |
| Shifter | AXS POD ULTIMATE RIGHT BRIDGE |
| Brakes | SRAM CODE ULTIMATE |
| F. Rotor | SRAM HS2 180 |
| R. Rotor | SRAM HS2 180 |
| Post | FOX FACTORY TRANSFER |
| Wheelset | DT XMC 1501 – CARBON |
| Tire Front | MAXXIS MINION DHF 29 X 2.6 EXO |
| Tire Rear | MAXXIS REKON 29 X 2.6 EXO |
| Saddle | WTB SILVERADO 142MM YETI |
