25 SB120 C-Series
25 SB120 C-Series
Forget the numbers. Mute the speculation. Let the other guys invent cute alternatives for “cross country”. Steer clear of pigeon holes and limiting beliefs. Strap on your blinders and go get lost. Then decide what the SB120 means to you. And you alone. Definition ready.
Trail. Check mate. Crushing souls on the descent is more than half the fun. And a hell of a lot more than half the point. The SB120 is wicked quick in your direction of choice.
FRAME TRAVEL:
120mm using Switch Infinity suspension technology
FORK TRAVEL:
130mm
WHEEL SIZE:
29″
FRAME HIGHLIGHTS:
NEW short travel trial frame platform
NEW Switch Infinity assembly on T-Series
NEW Threaded bottom bracket
NSW High-clearance downtube
NEW Dual-density downtube protection
Universal Derailleur Hanger (UDH)
Secure, fully enclosed internal cable management
Compatible with long dropper posts
100% standard sealed Enduro Max bearings
Floating collect axle pivot design
Ultra-compact shock extender
Boost spacing
SIZING:
X-Small- 145 CM – 160 CM
Small – 155 CM – 170 CM
Medium – 165 CM – 180 CM
Large – 178 CM – 191 CM
X-Large – 185 CM – 201 CM
XX-Large – 195 CM – 210 CM
WARRANTY:
Lifetime
COLOURS:

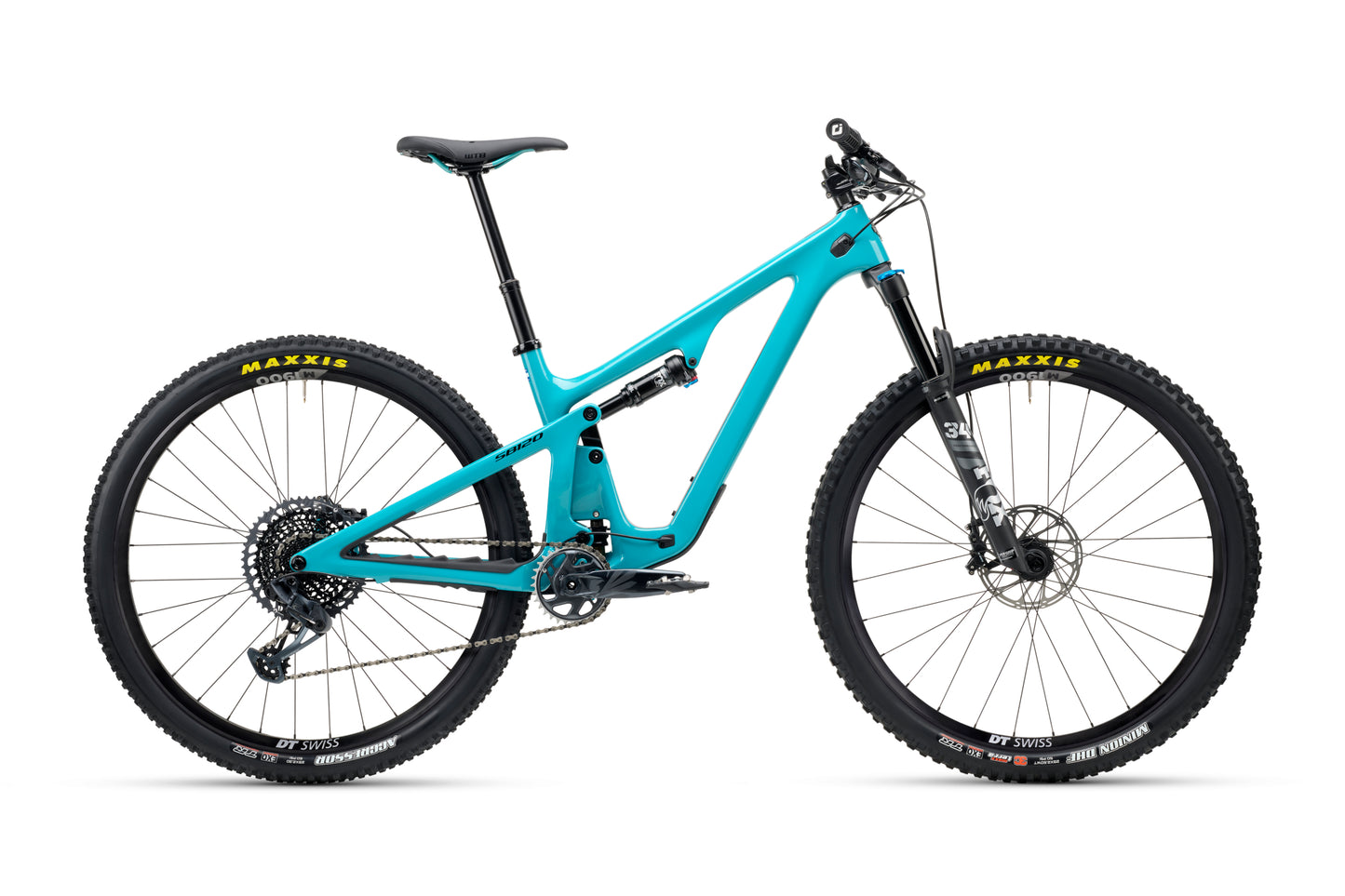

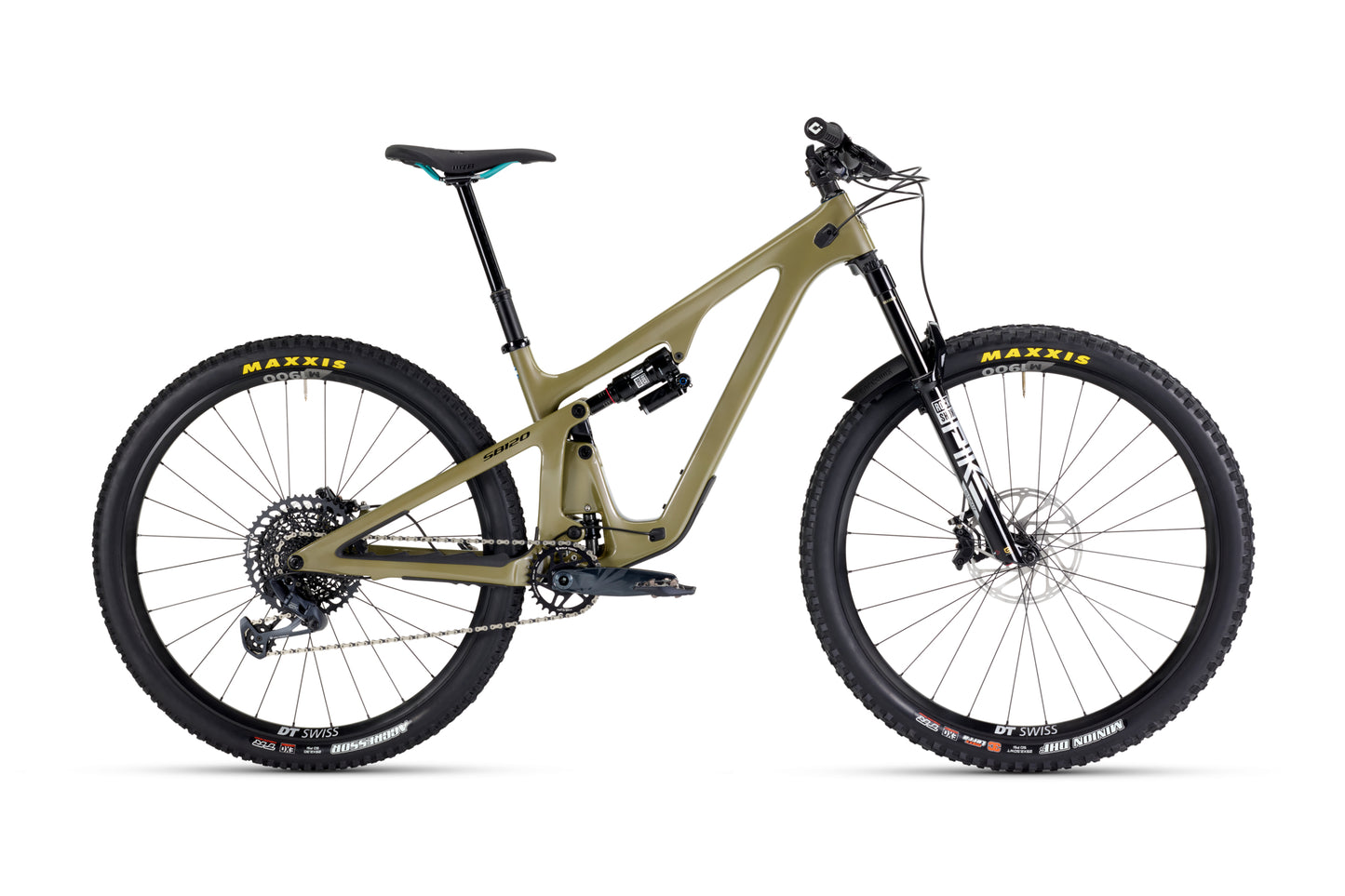

Turquoise, Raw Carbon, Lichen
PRICING:
C-Series C2 SRAM GX – $8,700
C-Series C2 SRAM GX (Fox Factory Upgrade) – $9,600
C-Series C2 SRAM GX Lunch Ride – $9,800
C-Series C3 SRAM GX AXS T-Type – $10,200
C-Series C3 SRAM GX AXS T-Type (Fox Factory Upgrade) – $10,900
SPECS:
- C2 SRAM GX
- C2 SRAM GX LUNCHRIDE
- C3 SRAM GX AXS T-TYPE
SB120 | C-SERIES CARBON |
Fork | FOX PERFORMANCE 34 130MM |
Shock | FOX PERFORMANCE DPS |
Headset | CANE CREEK 40 INTEGRATED |
Bar | BURGTEC RIDE ALLOY ENDURO 35X780MM |
Stem | BURGTEC ENDURO MK3 35X50MM |
Grips | RACE FACE GRIPPLER |
Crank | SRAM GX DUB 30T |
Rear Der. | SRAM GX EAGLE |
Cassette | SRAM GX EAGLE 10-52 |
Shifter | SRAM GX EAGLE |
Brakes | SRAM G2R |
F. Rotor | CENTRELINE 180 |
R. Rotor | CENTRELINE 180 |
Post | ONE UP DROPPER |
Wheelset | DT M1900 WHEELSET 29 / 30MM |
Tire Front | MAXXIS MINION DHF 29 X 2.5 EXO |
Tire Rear | MAXXIS AGGRESSOR 29 X 2.3 EXO |
Saddle | WTB SILVERADO 142MM YETI |
SB120 | C-SERIES CARBON |
Fork | ROCK SHOX PIKE ULTIMATE 130MM |
Shock | ROCK SHOX SUPER DELUXE ULTIMATE |
Headset | CANE CREEK 40 INTEGRATED |
Bar | BURGTEC RIDE ALLOY ENDURO 35X780MM |
Stem | BURGTEC ENDURO MK3 35X50MM |
Grips | ODI ELITE PRO |
Crank | SRAM GX DUB 30T |
Rear Der. | SRAM GX EAGLE |
Cassette | SRAM GX EAGLE 10-52 |
Shifter | SRAM GX EAGLE |
Brakes | SRAM CODE R |
F. Rotor | CENTRELINE 180 |
R. Rotor | CENTRELINE 180 |
Post | ONE UP DROPPER |
Wheelset | DT M1900 WHEELSET 29 / 30MM |
Tire Front | MAXXIS MINION DHF 29 X 2.5 EXO |
Tire Rear | MAXXIS AGGRESSOR 29 X 2.3 EXO |
Saddle | WTB SILVERADO 142MM YETI |
SB120 | C-SERIES CARBON |
Fork | FOX PERFORMANCE 34 130MM |
Shock | FOX PERFORMANCE DPS |
Headset | CANE CREEK 40 INTEGRATED |
Bar | BURGTEC RIDE ALLOY ENDURO 35X780MM |
Stem | BURGTEC ENDURO MK3 35X50MM |
Grips | ODI ELITE PRO |
Crank | SRAM GX EAGLE 30T / T-TYPE W/GUARD |
Rear Der. | SRAM GX AXS T-TYPE |
Cassette | SRAM GX EAGLE 10-52 T-TYPE |
Shifter | AXS POD RIGHT BRIDGE |
Brakes | SRAM G2R |
F. Rotor | CENTRELINE 180 |
R. Rotor | CENTRELINE 180 |
Post | ONE UP DROPPER |
Wheelset | DT M1900 WHEELSET 29 / 30MM |
Tire Front | MAXXIS MINION DHF 29 X 2.5 EXO |
Tire Rear | MAXXIS AGGRESSOR 29 X 2.3 EXO |
Saddle | WTB SILVERADO 142MM YETI |
SB120 | TURQ SERIES CARBON |
Fork | FOX FACTORY 34 130MM GRIP 2 |
Shock | FOX FACTORY DPS |
Headset | CHRIS KING |
Bar | RACE FACE NEXT R 35X780MM |
Stem | RACE FACE TURBINE R 35X50MM |
Grips | ODI ELITE PRO |
Crank | SRAM XX EAGLE 32T / T-TYPE W/GUARD |
Rear Der. | SRAM XX AXS T-TYPE |
Cassette | SRAM XX EAGLE 10-52 T-TYPE |
Shifter | AXS POD ULTIMATE RIGHT BRIDGE |
Brakes | SRAM CODE ULTIMATE |
F. Rotor | SRAM HS2 180 |
R. Rotor | SRAM HS2 180 |
Post | FOX FACTORY TRANSFER |
Wheelset | DT XMC 1501 – CARBON |
Tire Front | MAXXIS MINION DHF 29 X 2.5 EXO |
Tire Rear | MAXXIS AGGRESSOR 29 X 2.3 EXO |
Saddle | WTB SILVERADO 142MM YETI |
